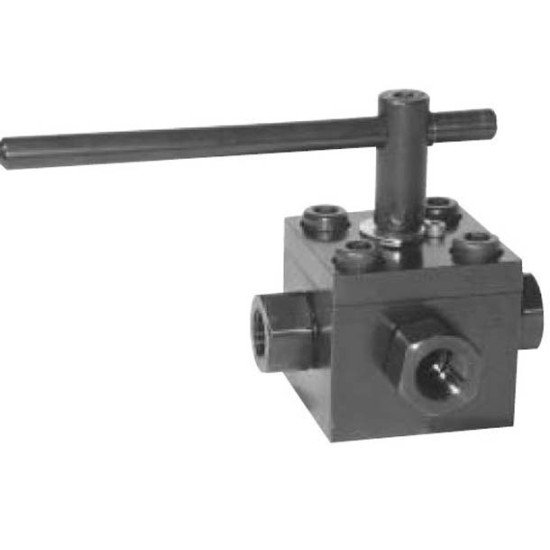

Actual product may vary from image shown.
Series BV3H, BV4H Parker Series BV3H, BV4H
Door to Door International Shipping
Ships from U.S.A.
- Stock:
- Brand: Parker
- Model: Series BV3H, BV4H
- MPN: BV4H06S4SS1N
Product Views: 1170
$2,348.46
Series BV3H and BV4H are true 3-way and 4-way high pressure valves, incorporating many of the advanced features of the 2-way product. These products come in steel and are rated at 414 Bar (6000 PSI). Ports range from 1/4" to 2" with a variety of porting options. Features: Three dimensional balanced sealing for near zero leakage in any circuit. The unique thrust bearing spindle design reduces actuation torque and reduces the chance of the valve seizing when inactive for periods of time. Special seal design enables high port to port ΔP application suitability. A variety of ball patterns allows flexibility in many applications.
| Product Details | |
| Size | 06 - 3/8 |
| Body Material | S - Steel |
| Series | BV4H - 4-Way |
| Ball Pattern | 4 - X-Bore 90° 4-Way Opt. |
| Ball and Stem Material | S - Steel |
| Ball Seals | 1 - Delrin |
| Maximum pressure | 414 Bar (6000 PSI) |
| Shaft Seals | N - Nitrile |
| Ports | S - SAE Thread |
| Standard Handle | T-Type Handle |
| Weights - kg (lbs.) | 06 - 2.7 (6.0) |
| Temperature Range with Standard Seals | -30°C to +100°C (-22°F to +212°F) |
| Spindle Material | Steel, Zinc Plated |
| Standard Pattern | “L” Bore (3W), “T” Bore (4W) |
