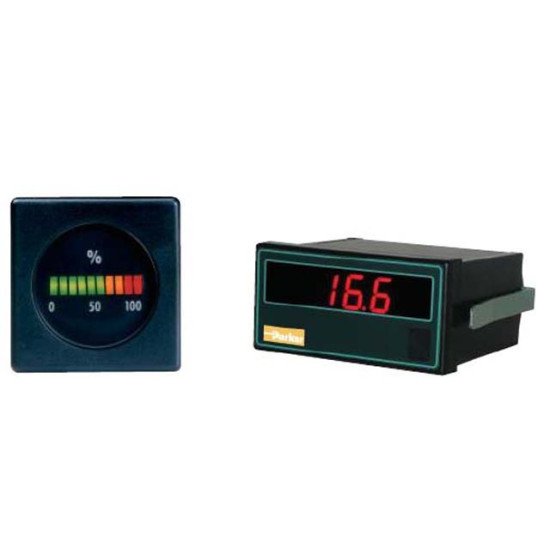

Actual product may vary from image shown.
Moisture Sensor Displays - Product accessories
Door to Door International Shipping
Ships from U.S.A.
- Stock: In Stock
- Brand: Parker
- Model: Moisture Sensor Displays - Product accessories
- MPN: ACC6NF003
Product Views: 770
$111.48
Specifications: Bar Graph Indicator (PBG8341A). Construction: Housing – nylon 6/6, window – acrylic, bezel/board supports – ABS, pins – phosphor bronze. Power supply: 11 – 30 Vdc. Signal input: (By dipswitch configuration): Off – differential up to 5V. A – single signal (Ref. 0V) up to 5V. B – single signal (Ref. 1V) up to 6V. Cut out size: 45.6mm x 45.6mm. Fixing: Push fit panel thickness 0.9mm to 3.2mm. Sealing: Designed to IP50 standard. (Front face may be silicon sealed after LED configuration). Scale: Supplied 0 to 100% in horizontal Other scales, in volume, consult Parker Hannifin. Scaling factors: 10% to 100% range. Fully adjustable. Lamp intensity: 4mcd each. Front viewing: Polarized. Weight: 29gms.
| Product Details | |
| Description | 5 meter M12, 5 pin molded cable (IP68) |
