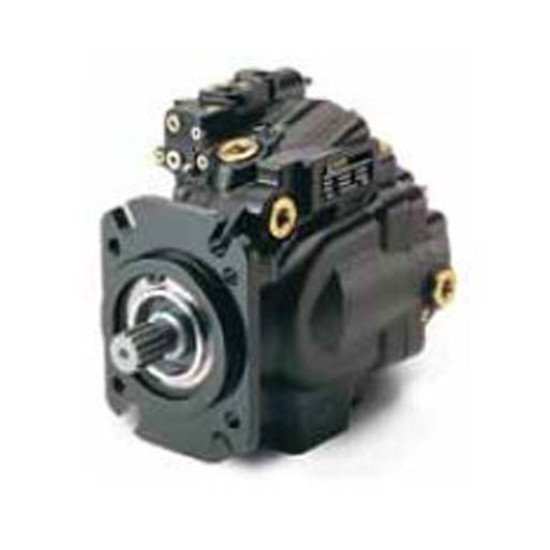

P3 High Pressure/Super Charged Mobile Piston Pumps

P3 Piston Pumps are ideal for open circuit mobile applications with high self priming speed and operating pressure up to 4650 PSI (320 BAR). These high performance pumps are suited for mobile applications where inlet fill characteristics are not ideal; i.e. high altitudes, long inlet lines, cold weather and high pump drive speeds. Benefits/Features: Compact. Low noise level. Sealed shaft bearing. Service friendly. Reliable. Long-lasting. Flexible. Easy to install. High self-priming speed.

Product Details
Mounting Flange	C - SAE C 2/4-Bolt
A Max* Dimensions	12.89 (327.5)
G Dimensions	4.72 (120)
Port Location	A - Side Flanges, UNC
Seal Type	N - Nitrile, single shaft seal
Controls	LA - Load sensing (2 spool)/Pmax without bleed orifice
D Dimensions	4.41 (112)
F Dimensions	5.71 (145)
B Max. Dimensions	14.76 (12.5)
E Max. Dimensions	6.86 (176)
C Max. Dimensions	2.44 (62)
Rotation*	R - Right (CW)
Displacement in3/rev (cm3/rev)	075 - 4.6 (75)
Percent of Max. Displacement	00 - 100% Stroke, standard factory setting
Differential Pressure Setting	20 - Recommended Initial Factory Setting
Torque Control Setting	00 - For Non-torque Control Pumps
Thru-drive	A1 - SAE A – 2-Bolt with SAE A Spline
Paint Option	U - No Paint
Multiple Pumps Option	1 - Single Pump
Pump Series	P3
Pressure Compensator Setting1 Factory set in bar times 10; Range	21 = 210 bar setting
Shaft Options	C1 - SAE C Spline
