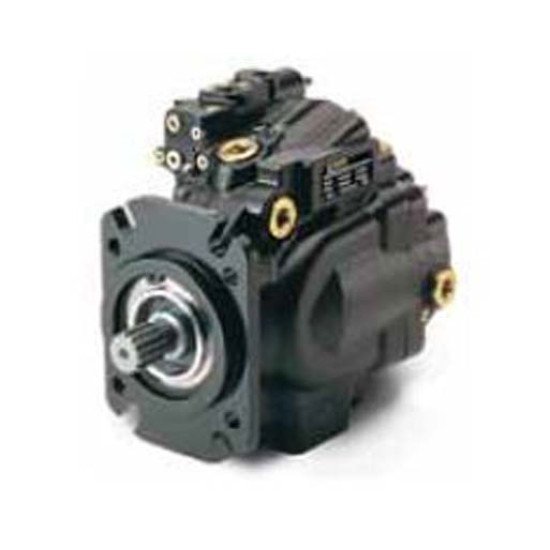

Actual product may vary from image shown.
P3 High Pressure/Super Charged Mobile Piston Pumps
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: P3 High Pressure/Super Charged Mobile Piston Pumps
- MPN: P3145L00D1D21PA00N00S1A1P
Product Views: 759
$20,645.61
P3 Piston Pumps are ideal for open circuit mobile applications with high self priming speed and operating pressure up to 4650 PSI (320 BAR). These high performance pumps are suited for mobile applications where inlet fill characteristics are not ideal; i.e. high altitudes, long inlet lines, cold weather and high pump drive speeds. Benefits/Features: Compact. Low noise level. Sealed shaft bearing. Service friendly. Reliable. Long-lasting. Flexible. Easy to install. High self-priming speed.
| Product Details | |
| Mounting Flange | D - SAE D 4-Bolt |
| A Max* Dimensions | 14.76 (375.0) |
| G Dimensions | 6.34 (161) |
| Port Location | A - Side Flanges, UNC |
| Seal Type | N - Nitrile, single shaft seal |
| Controls | PA(4) - Std. max pressure control (Pmax), 100-320 bar (1450-4600 PSI) |
| D Dimensions | 4.49 (114) |
| F Dimensions | 7.13 (181) |
| B Max. Dimensions | 0.50 (12.7) |
| E Max. Dimensions | 8.98 (228) |
| C Max. Dimensions | 2.98 (75.6) |
| Rotation* | L - Left (CCW) |
| Displacement in3/rev (cm3/rev) | 145 - 8.8 (145) |
| Percent of Max. Displacement | 00 - 100% Stroke, standard factory setting |
| Differential Pressure Setting | 00 - Use with PA Control only |
| Torque Control Setting | 00 - For Non-torque Control Pumps |
| Thru-drive | S1 - No Thru-drive |
| Paint Option | P - Parker Black |
| Multiple Pumps Option | 1 - Single Pump |
| Pump Series | P3 |
| Pressure Compensator Setting1 Factory set in bar times 10; Range | 21 = 210 bar setting |
| Shaft Options | D1 - SAE D Spline |
