Actual product may vary from image shown.

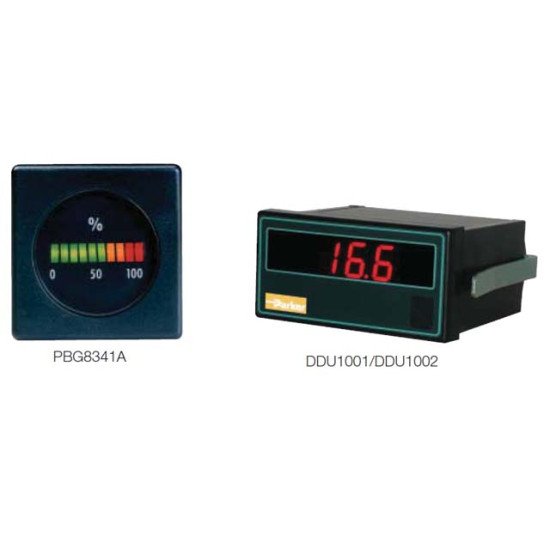

Moisture Sensor Displays
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Moisture Sensor Displays
- MPN: PBG8341A
Product Views: 525
$1,054.45
Construction:Housing – nylon 6/6, window – acrylic, bezel/board supports – ABS,pins – phosphor bronze
Power supply:11 – 30 Vdc
Signal input: (By dipswitch configuration)Off – differential up to 5V A – single signal (Ref. 0V) up to 5V B – single signal (Ref. 1V) up to 6V
Cut out size:45.6mm x 45.6mm
Fixing:Push fit panel thickness 0.9mm to 3.2mm
Sealing:Designed to IP50 standard.(Front face may be silicon sealed after LED configuration)
Scale:Supplied 0 to 100% in horizontal Other scales, in volume, consult Parker Hannifin
Scaling factors:10% to 100% range. Fully adjustable
Lamp intensity:4mcd each
Front viewing:Polarized
Weight:29gms
Power supply:11 – 30 Vdc
Signal input: (By dipswitch configuration)Off – differential up to 5V A – single signal (Ref. 0V) up to 5V B – single signal (Ref. 1V) up to 6V
Cut out size:45.6mm x 45.6mm
Fixing:Push fit panel thickness 0.9mm to 3.2mm
Sealing:Designed to IP50 standard.(Front face may be silicon sealed after LED configuration)
Scale:Supplied 0 to 100% in horizontal Other scales, in volume, consult Parker Hannifin
Scaling factors:10% to 100% range. Fully adjustable
Lamp intensity:4mcd each
Front viewing:Polarized
Weight:29gms
| Product Details | |
| Supersedes | PBG.8341.1A |
