Actual product may vary from image shown.

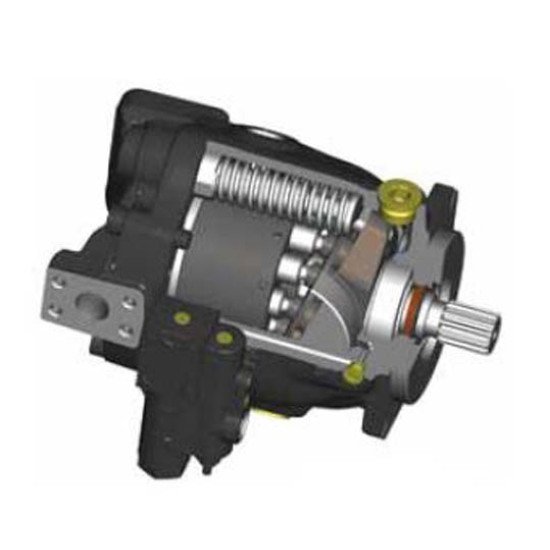

P1/PD Medium Pressure Mobile Piston Pumps
- Stock: Ask for Lead Time
- Brand: Parker
- Model: P1/PD Medium Pressure Mobile Piston Pumps
- MPN: PD060PC02SRS5AAMTE1200000
Product Views: 720
$0.00
Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life Easy to service.
| Product Details | |
| G Dimensions | 4.88 (123.9) |
| H Max. Dimensions | 4.80 (122) |
| Port type | 2 - SAE Threaded Ports (Available only on "E" port and "S" or "C" mount) |
| F Dimensions | 3.23 (82) |
| A Dimensions | 9.96 (253.0) |
| Configuration | S - Industrial (PD) |
| Design Letter | A |
| E Dimensions | 3.98 (101.2) |
| Port Orientation | E - End Ports |
| Control Options | AM - Pilot operated pressure limiter with mechanical adjustment and SAE 4 Vent Port |
| Paint | 00 - No Paint |
| Thru-Drive Mounting Pad/Coupling | 0 - No Thru-Drive |
| Pump Series | PD - Industrial |
| Open Circuit | P - Open Circuit (One Side of Center) |
| Mounting and Ports | C - SAE C 2-Bolt Pilot SAE Flange Connection Ports with SAE Aux Ports |
| Shaft Options | 02 - Keyed shaft - SAE C 32-1 KEY |
| Adjustable Displacement Stops* (For E and S Port Orientation Onl | 1 - Adjustable maximum displacement stop |
| Single Shaft Seal | S |
| Shaft Rotation | R - Clockwise |
| Fluorocarbon Seal Material | 5 |
| Additional Control Options | T - Torque Limiter Control (Used with AM, AN or AL control options) |
| Displacement 60cc/rev. (3.66 in³/rev) | 060 |
| Special Features | 00 |
