P1/PD Medium Pressure Mobile Piston Pumps

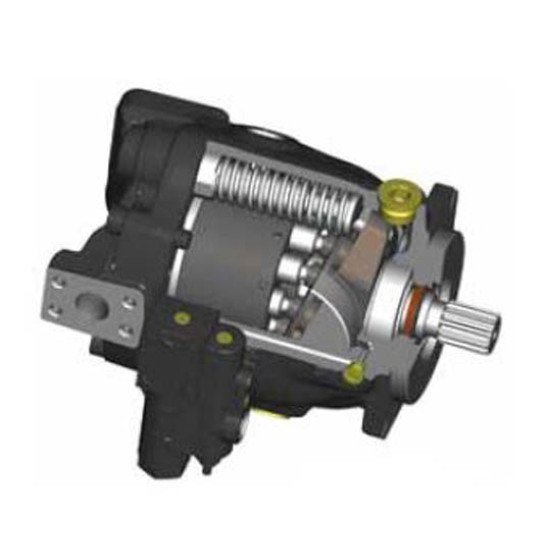

Actual product may vary from image shown.

P1/PD Medium Pressure Mobile Piston Pumps

Stock: Ask for Lead Time
Brand: Parker
Model: P1/PD Medium Pressure Mobile Piston Pumps
MPN: PD060PS02SRS5AAN0T00A0000

Product Views: 781

Based on 0 reviews. - Write a review

$0.00

Qty

Add to Wish List Compare this Product

Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life Easy to service.

Product Details
G Dimensions	4.88 (123.9)
H Max. Dimensions	4.80 (122)
Port type	0 - Flange Ports
F Dimensions	3.23 (82)
A Dimensions	9.96 (253.0)
Configuration	S - Industrial (PD)
Design Letter	A
E Dimensions	3.98 (101.2)
Port Orientation	T - Side Ports with Thru-Drive
Control Options	AN* - Pilot operated pressure limiter with ISO4401 interface & SAE 4 Vent Port
Paint	00 - No Paint
Thru-Drive Mounting Pad/Coupling	A - SAE 82-2 (A), 16 (A), 9T coupling
Pump Series	PD - Industrial
Open Circuit	P - Open Circuit (One Side of Center)
Mounting and Ports	S - SAE C Pilot SAE Flange Connection Ports with SAE Aux Ports
Shaft Options	02 - Keyed shaft - SAE C 32-1 KEY
Adjustable Displacement Stops* (For E and S Port Orientation Onl	0 - None
Single Shaft Seal	S
Shaft Rotation	R - Clockwise
Fluorocarbon Seal Material	5
Additional Control Options	0 - No other options
Displacement 60cc/rev. (3.66 in³/rev)	060
Special Features	00
