Actual product may vary from image shown.

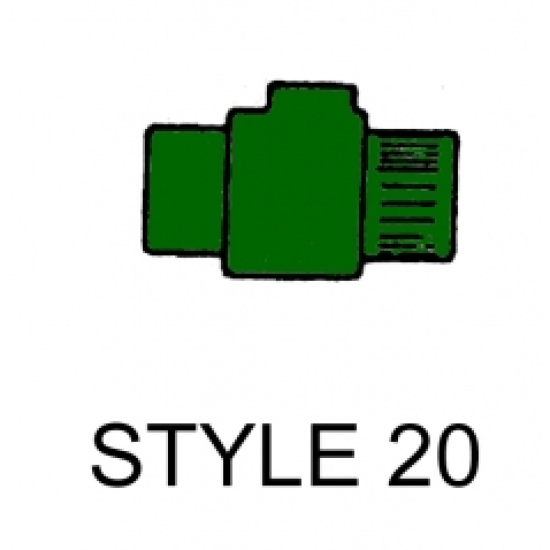

Style 20 Medium Pressure Swivel Joints
- Stock: Ask for Lead Time
- Model: Medium Pressure
Product Views: 2371
$0.00
Option
| Item # | Style | Size | End Connection | Material | Approx. Weight (lbs) | |
|---|---|---|---|---|---|---|
| 1 | 10 | 1" | Threaded | Cast Steel | 12 | |
| 2 | 10 | 1 1/4" | Threaded | Cast Steel | 14 | |
| 3 | 10 | 1 1/2" | Threaded | Cast Steel | 14 | |
| 4 | 10 | 2" | Threaded | Cast Steel | 26 | |
| 5 | 10 | 2 1/2" | Threaded | Cast Steel | 53 | |
| 6 | 10 | 3" | Threaded | Cast Steel | 53 | |
| 7 | 20 | 1" | Threaded | Cast Steel | 4 | |
| 8 | 20 | 1 1/4" | Threaded | Cast Steel | 5 | |
| 9 | 20 | 1 1/2" | Threaded | Cast Steel | 5 | |
| 10 | 20 | 2" | Threaded | Cast Steel | 8 | |
| 11 | 20 | 2 1/2" | Threaded | Cast Steel | 18 | |
| 12 | 20 | 3" | Threaded | Cast Steel | 18 | |
| 13 | 30 | 1" | Threaded | Cast Steel | 5 | |
| 14 | 30 | 1 1/4" | Threaded | Cast Steel | 5 | |
| 15 | 30 | 1 1/2" | Threaded | Cast Steel | 5 | |
| 16 | 30 | 2" | Threaded | Cast Steel | 11 | |
| 17 | 30 | 2 1/2" | Threaded | Cast Steel | 23 | |
| 18 | 30 | 3" | Threaded | Cast Steel | 23 | |
| 19 | 40 | 1" | Threaded | Cast Steel | 6 | |
| 20 | 40 | 1 1/4" | Threaded | Cast Steel | 6 | |
| 21 | 40 | 1 1/2" | Threaded | Cast Steel | 6 | |
| 22 | 40 | 2" | Threaded | Cast Steel | 15 | |
| 23 | 40 | 2 1/2" | Threaded | Cast Steel | 26 | |
| 24 | 40 | 3" | Threaded | Cast Steel | 26 | |
| 25 | 50 | 1" | Threaded | Cast Steel | 9 | |
| 26 | 50 | 1 1/4" | Threaded | Cast Steel | 11 | |
| 27 | 50 | 1 1/2" | Threaded | Cast Steel | 11 | |
| 28 | 50 | 2" | Threaded | Cast Steel | 22 | |
| 29 | 50 | 2 1/2" | Threaded | Cast Steel | 40 | |
| 30 | 50 | 3" | Threaded | Cast Steel | 40 | |
| 31 | 60 | 1" | Threaded | Cast Steel | 8 | |
| 32 | 60 | 1 1/4" | Threaded | Cast Steel | 9 | |
| 33 | 60 | 1 1/2" | Threaded | Cast Steel | 9 | |
| 34 | 60 | 2" | Threaded | Cast Steel | 18 | |
| 35 | 60 | 2 1/2" | Threaded | Cast Steel | 36 | |
| 36 | 60 | 3" | Threaded | Cast Steel | 36 | |
| 37 | 70 | 1" | Threaded | Cast Steel | 11 | |
| 38 | 70 | 1 1/4" | Threaded | Cast Steel | 12 | |
| 39 | 70 | 1 1/2" | Threaded | Cast Steel | 12 | |
| 40 | 70 | 2" | Threaded | Cast Steel | 27 | |
| 41 | 70 | 2 1/2" | Threaded | Cast Steel | 43 | |
| 42 | 70 | 3" | Threaded | Cast Steel | 43 | |
| 43 | 80 | 1" | Threaded | Cast Steel | 13 | |
| 44 | 80 | 1 1/4" | Threaded | Cast Steel | 15 | |
| 45 | 80 | 1 1/2" | Threaded | Cast Steel | 15 | |
| 46 | 80 | 2" | Threaded | Cast Steel | 30 | |
| 47 | 80 | 2 1/2" | Threaded | Cast Steel | 57 | |
| 48 | 80 | 3" | Threaded | Cast Steel | 57 |
